• High capacity from an exclusive, single HFC-134a scroll compressor.
• Patented state-of-the-art electrostatically coated copper fin, tube, and tube sheet condenser coil for superior corrosion protection.
• Evaporator coil with copper tubing and aluminum fins, treated for improved condensate drainage.
• Precisely aligned, high efficiency evaporator fan motors and vane-axial fans reduce fan heat and improve cooling capacity.
• Lightweight, corrosion-proof composite condenser fan.
• Micro-Link^® 3 microprocessor controller.
• Auto defrost takes the guesswork out of setting defrost intervals while providing up to 40% power savings.

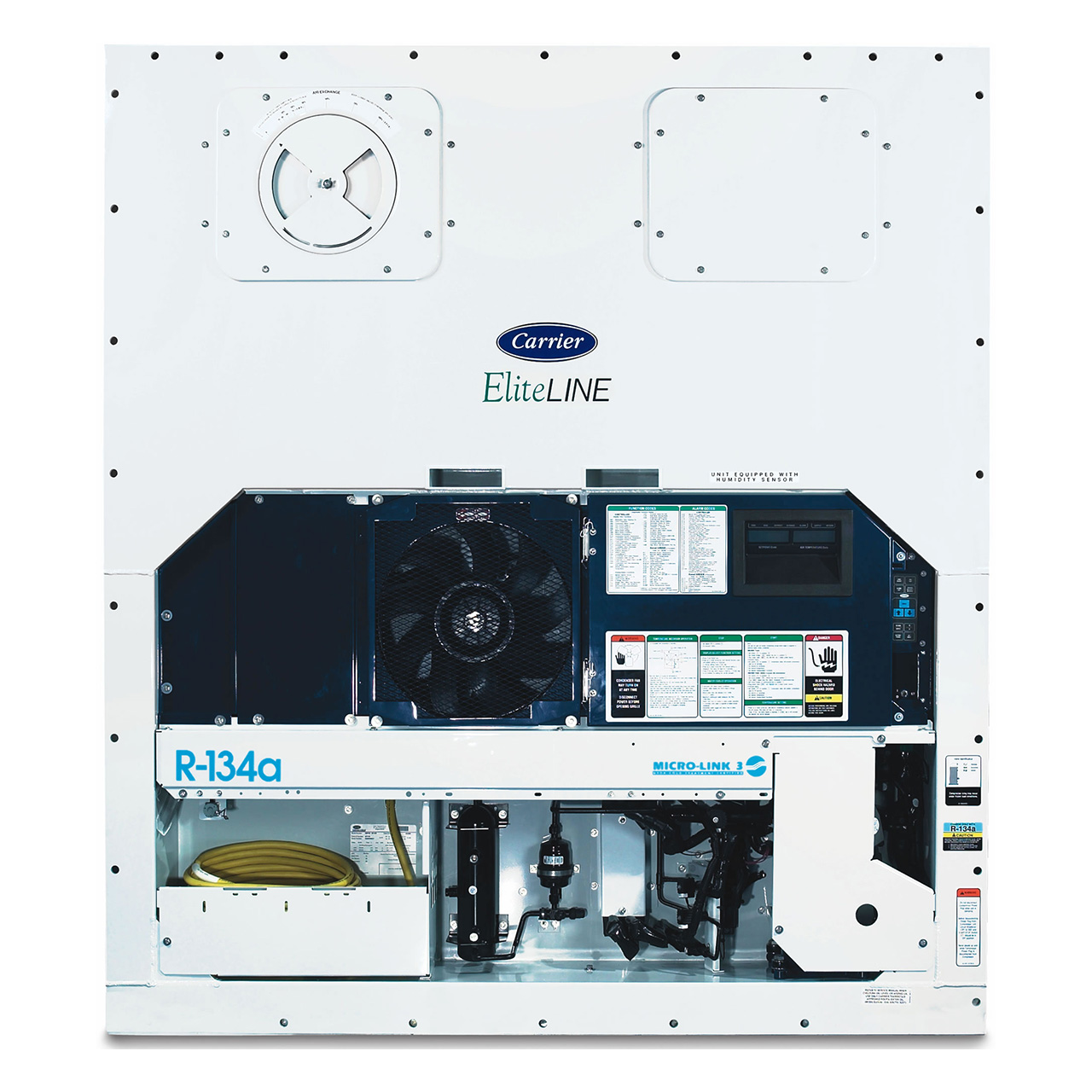

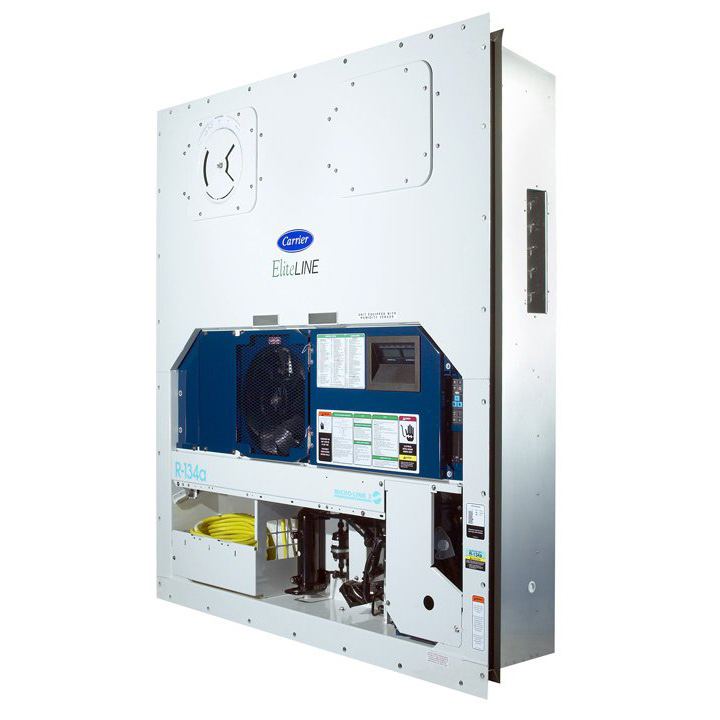

Carrier Transicold EliteLINETM Units

Carrier Transicold recently introduced two new units to its NT product line. These units have been assigned the names EliteLINE and StreamLINE. Both of these units use scroll compressor technology with the EliteLINE using the same frame package as the standard NT ThinLINE. The StreamLINE, as its name would indicate uses a new thinner frame that reduces the the depth to 335mm (13.2inches). The following gives a short overview of the key components that make the Carrier Transicold EliteLINE and StreamLINE units different from our standard ThinLINE unit:

The Economizer is a heat exchanger similar to the one used in the ThinLINE unit. It is used to acheive additional subcooling of the liquid refrigerant entering the evaporator TXV. This boosts the refrigeration capacity by nearly 30% during low box conditions. The Expansion Module (Input-Output Board) is used for controlling the additional system features of the unit. It is a slave to the ML2I controller, which controls the functions of the module. The Refrigerant / Oil Separator is part of the refrigeration circuit which ensures that oil leaving the compressor is promptly returned to the compressor oil sump. This feature protects against loss of lubrication to the compressor.

The Scroll Compressor is specifically designed for the demanding marine environment. The following are a few enhancements that have been incorporated into the design of the Scroll compressor.

• Large port discharge valve – Low power draw, reduced discharge temperatures.
  • Optimized Scroll wrap design – Greater efficiency, strength, and reliability.
  • Steel backed carbon bearing – Extended life bearings.
  • Marine powder paint coating – Superior corrosion protection.
  • Molded and sealed electrical junction box. – Improved water ingress prevention
  • High efficiency motor – Lower power consumption.
  • Large capacity oil sump and sump magnet – Reliable oil filtration

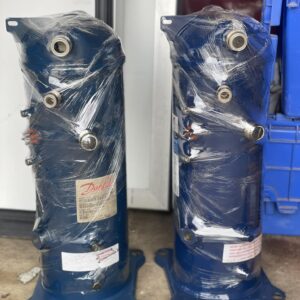

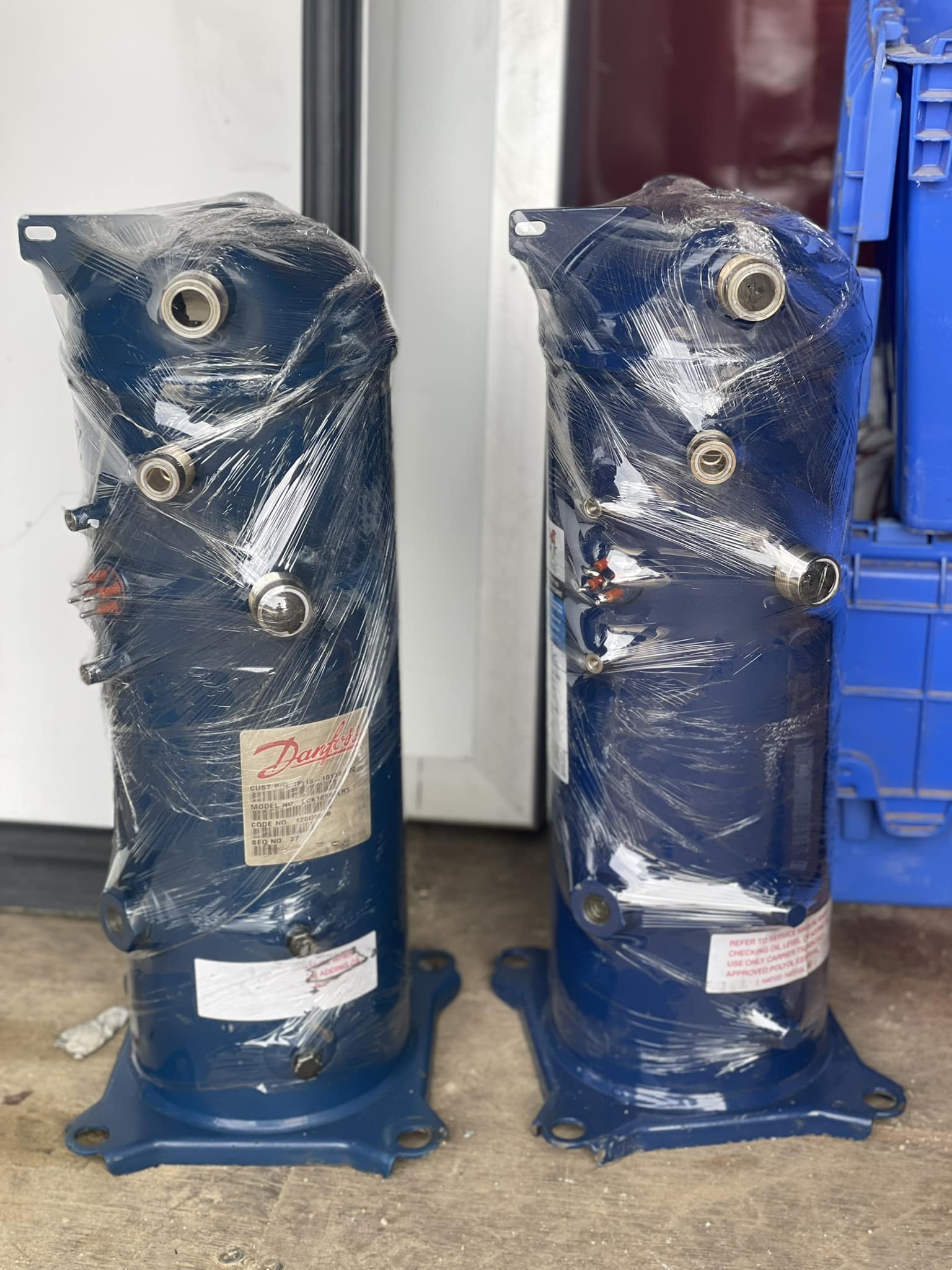

COMPRESSOR SCROLL ELITELINE
