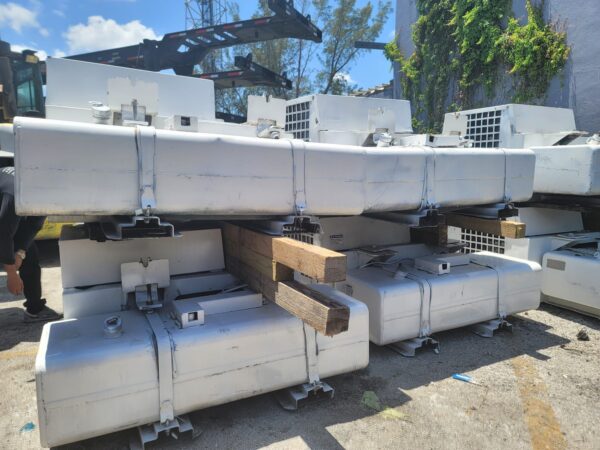

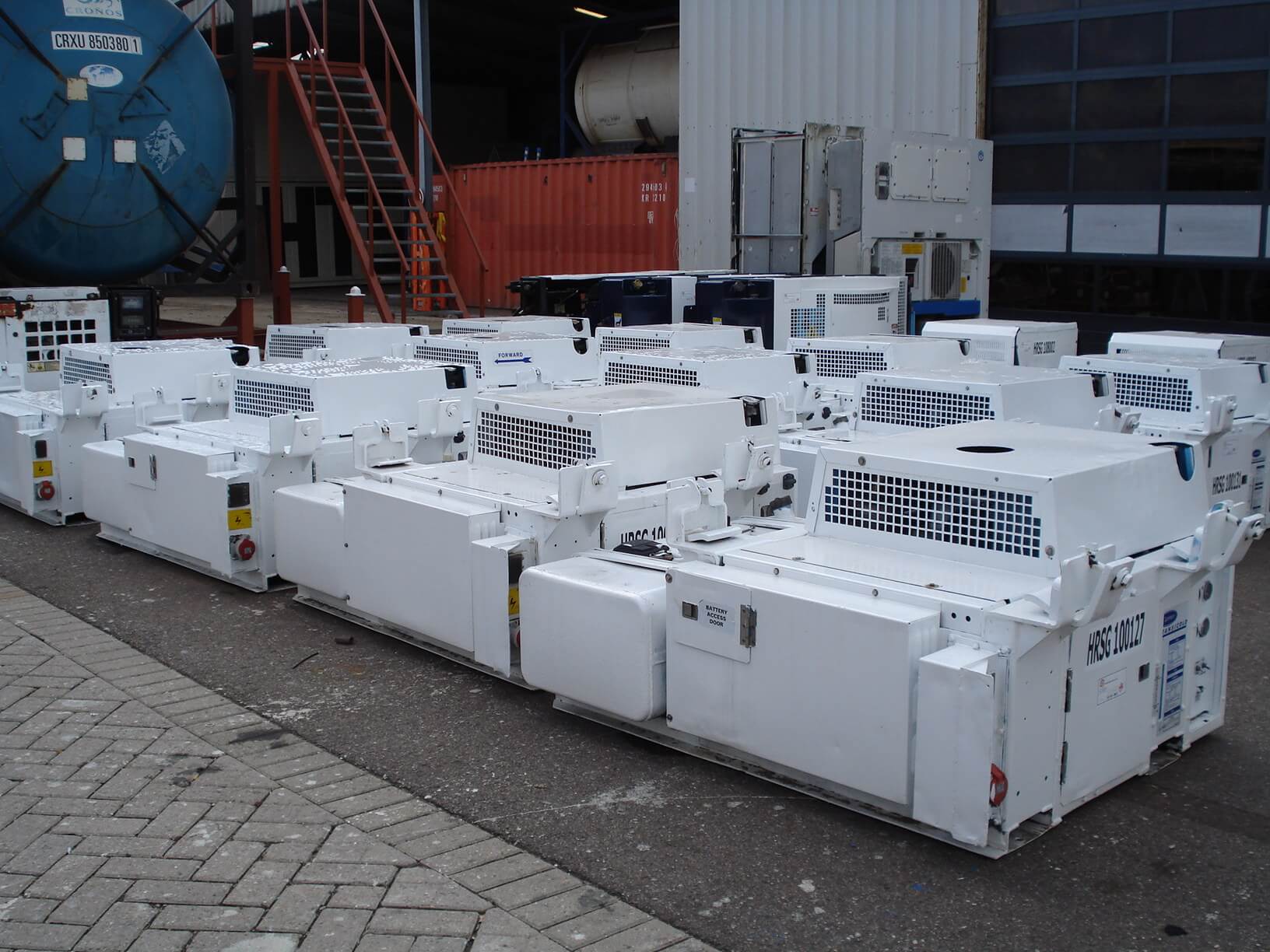

Buy Carrier Undermount Gensets Online

Carrier Transicold has expanded its portfolio of PowerLINE® generator sets for refrigerated containers with the new Series 55 models designed for compliance with EU Stage V standards for diesel engines.

The new PowerLINE Series 55 models use a familiar engine style and a new permanent-magnet generator in a system designed for reliability and simplicity of operation. Recommended for European applications, the Series 55 bears the CE mark, verification that its 18.5 kW engine complies with Europe’s Stage V nonroad mobile machinery emissions standard, which includes low thresholds for carbon monoxide, hydrocarbons, particulate matter and nitrogen oxides.

Buy Carrier  Undermount Genset 69UG15-050S-55

Buy Carrier  Undermount generator 69UG15-050S-55

The combination of a fuel-efficient diesel engine, built-in FuelWise™ two-speed functionality and the new ultra-high-efficiency generator, results in a reliable, uninterrupted electrical source for refrigerated containers when transported over land via truck or rail. The generator features a single-winding, contactless architecture for reduced complexity and enhanced reliability.

Carrier  POWERLINE 69UG15-050S-55

Carrier TRANSICOLD 69UG15-050S-55

Carrier Transicold’s exclusive FuelWise feature allows the system to run at two speeds: 1800 rpm, corresponding to 60 Hz, and 1500 rpm, corresponding to 50 Hz. The system is optimized to operate at low speed, allowing the engine to run slower for significant fuel savings. It will automatically switch to high speed based on conditions corresponding to refrigeration system load. The FuelWise feature helps PowerLINE Series 55 generator sets achieve fuel savings of up to 34% when hauling perishables and frozen commodities at typical refrigerated setpoints, which is 6% better than legacy PowerLINE generator sets with FuelWise (28%), thanks to the new ultra-high-efficiency generator.

Buy Carrier  POWERLINE 69UG15-050S-55

Buy Carrier TRANSICOLD 69UG15-050S-55

KEY FEATURES

• Proven 2.2-liter diesel 18.5 KW engine EU Stage V compliant, with electronic governor.
• CE option included.
• A new ultra-high-efficiency 15 kW custom-designed permanent magnet generator (PMG) that pushes efficiency well beyond conventional generators.
• Standard implementation of enhanced FuelWise™ functionality, a fuel-saving technology that automatically switches the generator set between two speeds via a simple black box controller.
• 189 liter standard tank (113 liter, 258 liter tank options).
• Standard four-point mounting.
• Frame and sheet metal components powder-coated for durability and superior corrosion protection.
• Carrier full-flow spin-on oil filter with internal bypass filtration is standard in all units and extends service intervals.
• Integral fuel filter with water separator.
• Fuel heater/Fuel warmer.
• External In-line fuel strainer with clear bowl.
• High-efficiency air cleaner (standard dry element, optional oil bath).
• Self-tensioning, flexible, Poly V belt
• Stainless steel exhaust.
• Patented E-coat tube and fin radiator.
• 12V DC maintenance-free battery and solid state battery charger.
• Safety stop controls for low oil pressure, high water temperature.
• Large oil pan capacity extends running hours between oil changes.

DETAILS

WITH THE POWERLINE^® SERIES 13 GENERATOR SETS, TIER 4 COMPLIANCE IS SURPRISINGLY SIMPLE WHILE FUEL SAVINGS ARE A BIG BENEFIT.

Carrier’s newest PowerLINE generator sets deliver improved performance while achieving compliance with the 2013 Tier 4 emissions standard from the U.S. Environmental Protection Agency (EPA).

This upgraded line of PowerLINE generator sets incorporate ecoFORWARD™ technologies, resulting in a platform that is Carrier’s most fuel-efficient models to date, thanks to standard inclusion of the formerly optional FuelWise™ technology and use of a new ultra-high-efficiency 15 kW custom-designed permanent magnet generator. Fuel savings of up to 34% versus prior standard units provide customer with significant operational cost savings and longer hauls prior to refueling.

Buy Carrier  Undermount Genset 69UG15-068S-13

Buy Carrier  Undermount generator 69UG15-068S-13

The enhanced PowerLINE units provide uninterrupted power to operate ISO container refrigeration systems when used over land in intermodal applications. At the heart of the new platform is the ultra-high efficiency permanent magnet generator that allows the power drawn from the engine to be reduced by 20%. Common to this new Tier4 PowerLINE platform is the familiar 2.2-liter diesel engine now rated at 18.5 kW.

Carrier  POWERLINE 69UG15-068S-13

Carrier TRANSICOLD 69UG15-068S-13

This engine is based on Carrier’s current engine line, with its well-accepted speed sensor and electronic governor. Providing customers with a familiar, reliable engine means that their personnel do not have to learn operate and deal with complex new engine technology in the field while reaping the operational benefits of our high efficiency compliance platform.

The PowerLINE Tier 4 platform is compliant with U.S. EPA Tier 4. It is also compliant with California Air Resources Board (CARB) standards upon purchase and for seven years thereafter without further modification. After seven years CARB requires further emissions reductions for the engine class (8-19 KW) for units operating in California.

Buy  Carrier  POWERLINE 69UG15-068S-13

Buy Carrier TRANSICOLD 69UG15-068S-13

In response, Carrier developed an optional engine emissions system (EES)* for the Tier 4 PowerLINE models, designed to achieve compliance with CARB’s ultra-low diesel emissions standard known as ULETRU. Tier 4 PowerLINE units will need to be fitted with the EES option by the end of the seventh year, if they are to remain in use in California. The option would be available as either a factory or field install option

KEY FEATURES
