T-Series (Stage V compliant)

Delivering what matters

Thermo King’s new T-Series is the result of years of research and exhaustive testing. The T-Series sets new industry standards for reliability, performance, efficiency and low cost of ownership. The T-Series delivers greater capacities at lower operating speeds and allows for precise temperature control. Low operation and maintenance costs, as well as fuel saving technologies, keep cost of ownership to a minimum.

The best solution available for CNG Rear Mount applications.

When Thermo King established performance criteria for the T-Series, high ambient capability was a “must have”. Extensive field trials and thousands of running hours have proven the design able to perform in even the harshest of conditions, right up to 55°C. A heating option has been especially developed to ensure top performance at low ambients too.

Operation is easy and error-free, thanks to new, intuitive in-cab controllers. Ease of monitoring means the units will deliver optimum performance with maximum efficiency. The T-Series minimises an operator’s carbon footprint with reduced exhaust emissions and less waste. Whisper quiet operation will allow access to noise sensitive urban delivery areas.

With the widest range in the truck refrigeration industry, there is a model to suit all trucks from the smallest to the largest, running one, two or three temperature zones.

Thermo King NEW T Series

Thermo King has an all-new T-Series of temperature control units for straight trucks

The T-Series will be built at Thermo King plants in the United States, Ireland, and China. The new series eventually will replace all of the truck refrigeration units in Thermo King’s current lineup.

Thermo King has made major improvements with the T-SeriesThe plastic exterior skin is durable; engine and compressor are more efficient; and our hybrid SmartPower option can reduce fuel consumption and engine emissions by 40% to 60%. Noise is reduced by up to 87% with the hybrid option.”

The T-Series was developed to provide improved performance and a lower lifecycle cost. Highlights of the new units, which have the latest state-of-the-art features and a sleek new design that allows for easy access for service, include:

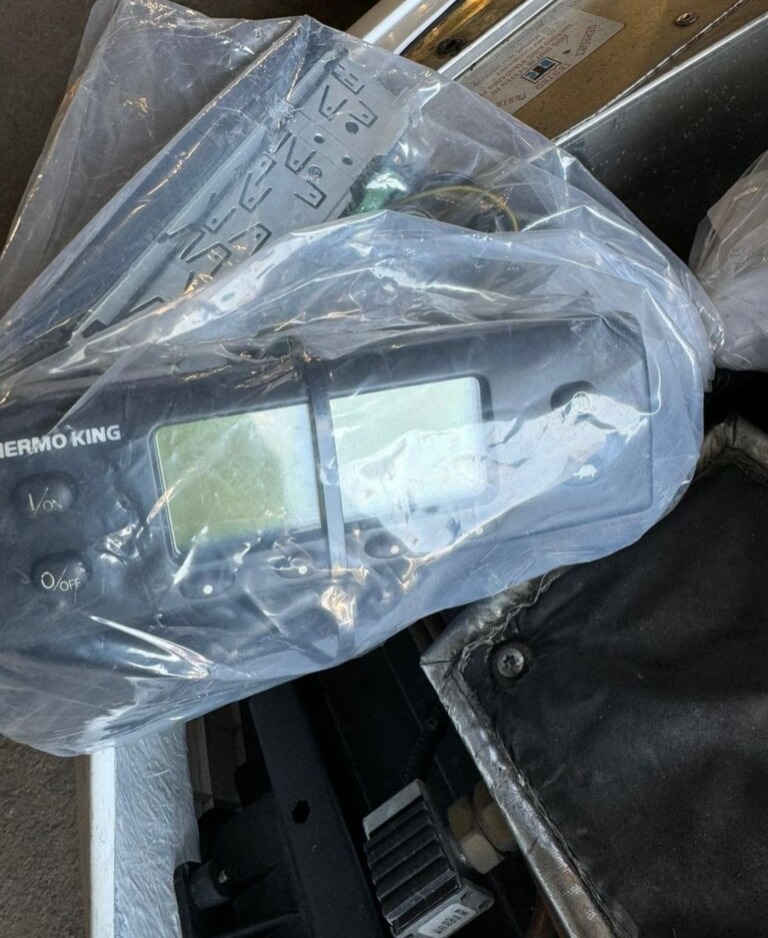

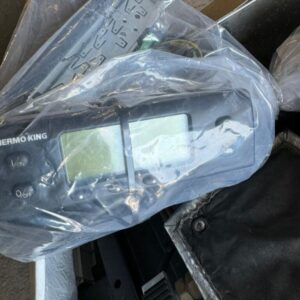

• A new TSR-2 controller with durable LED technology that helps ensure the correct parameters are set for every load, regardless of the language spoken by the driver.
• A choice of the time-tested reciprocating compressor or the new scroll compressor which has added technology for improved reliability, higher capacity, and greater fuel efficiency.
• Stationary or the optional over-the-road Hybrid SmartPower electric operation for fuel savings and zero emissions. The hybrid option is intended primarily for use
• Enhanced Whisper technology for “the quietest Thermo King truck units ever.”

The T-Series is backed by the strongest warranty the company has ever offered.

Units available include the T-500R, T-600R, T-800R, and T-1000R with reciprocating compressors; T-600, T-800, T-1000, and T-800 Spectrum multi-temperature; and T-1000 Spectrum multi-temperature with new scroll compressor technology.

Thermo King offers system diversity to fit your individual requirements.

The T-Series was developed to provide customers with improved performance, new state-of-the-art features and a lower life cycle cost that makes a real difference on the bottom line. Thermo King customers are the driving force behind the ongoing innovation that led to the T-Series,

so it was only natural that their input played a key role in the development of these new units. Time and time again, customers asked for cost and fuel savings, improved reliability and performance, quieter, cleaner operation, and that they are easier to use and service. Thermo King listened, and the result is the T-Series.

Here are just a couple examples of what’s new and improved:

• The new T-Series symbolic interface with SR-2 controller features durable LED technology and helps to ensure the correct parameters are set for every load, regardless of the language spoken by the driver
• Customers can choose between the time-tested reciprocating compressor or the new scroll compressor, which boasts added technology for improved reliability, higher capacity and greater fuel efficiency

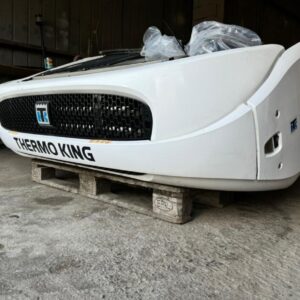

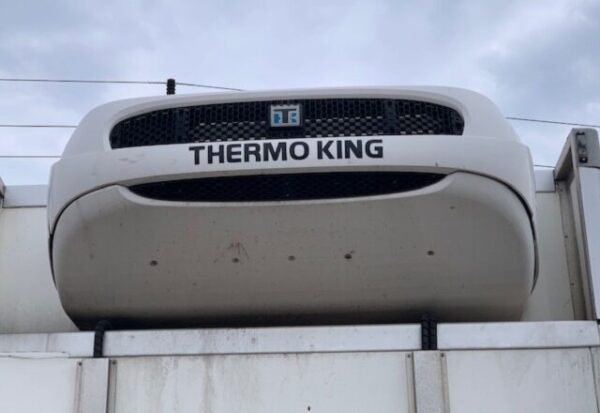

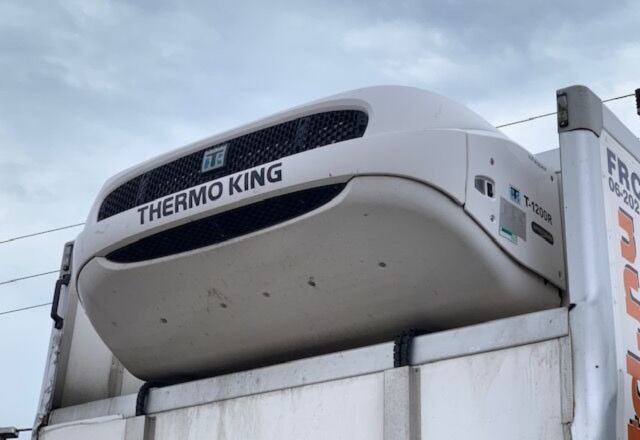

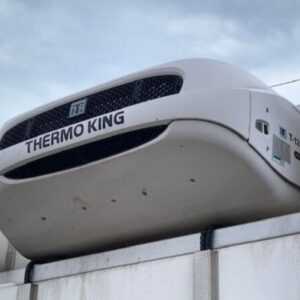

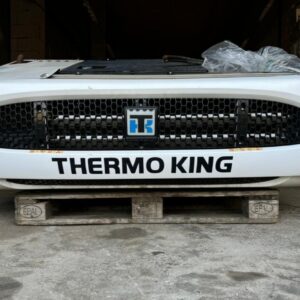

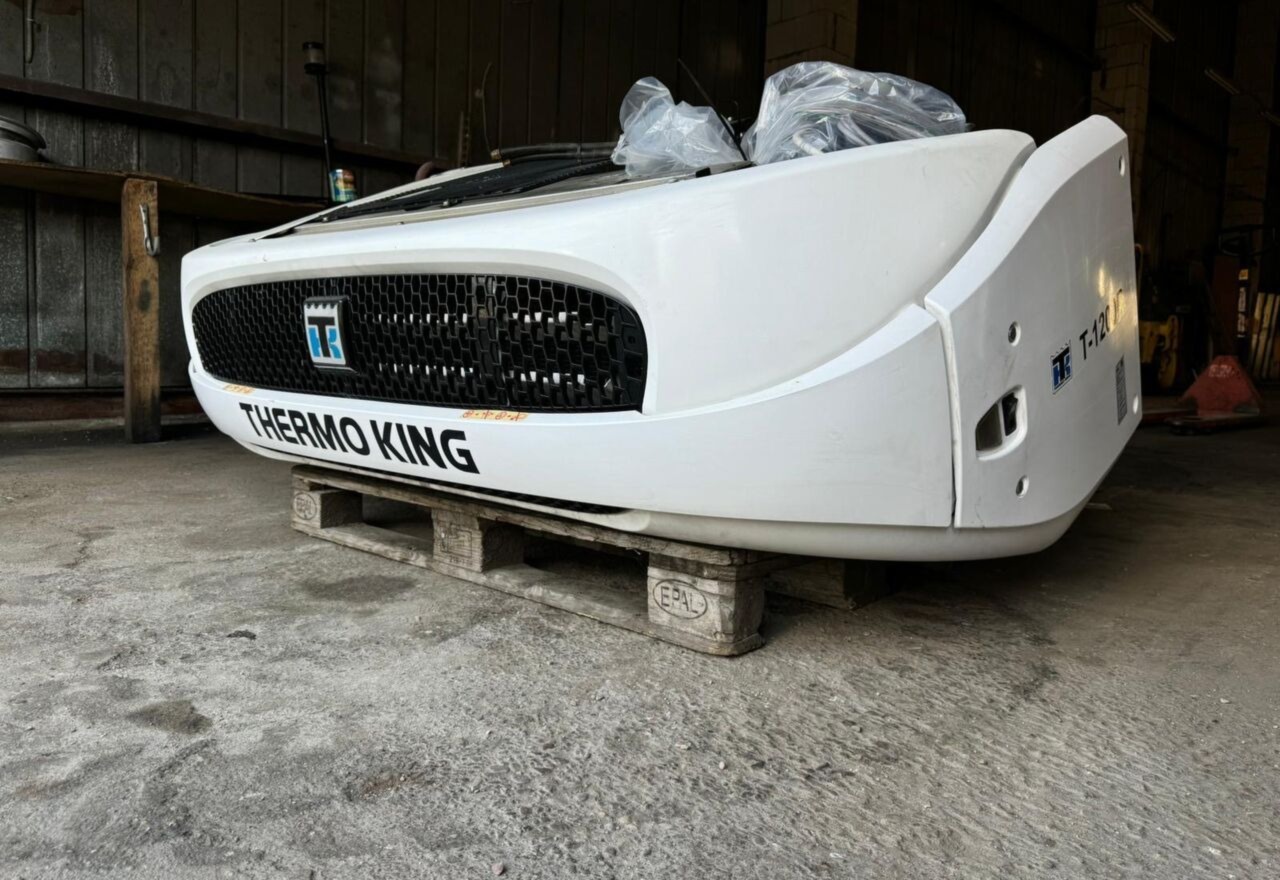

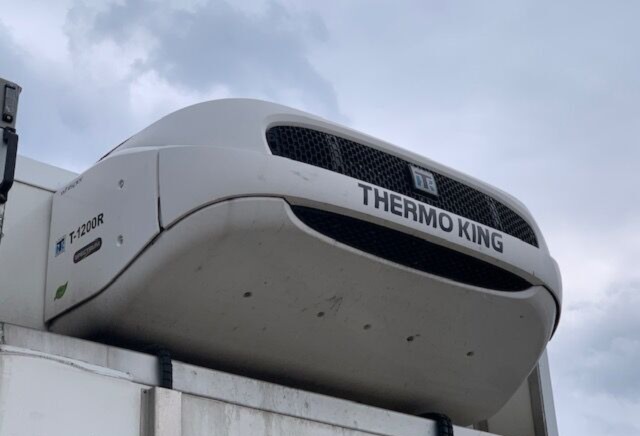

Unit available T-1200 SPECTRUM multi-temperature with new scroll compressor technology.

Specifications

Compressor

Refrigeration Capacity

Generic (Boxlength, Refrigerant, …)

Weight

Airflow

Unit Dimensions

Engine

Electrical Stand by Motor

Refrigerant

Features and Options

• Not Available
• Standard Feature
• Option: Factory Supplied
• Option: Dealer Supplied

Life cost management

ThermoKare Service contracts
Cycle-Sentry start/stop control system
EMI 2000 extended maintenance
Fuel level sensor
Thermo King high performance battery
Thermo King Energy battery
Premium AGM battery
2-year warranty coverage

Data capture & communications

TouchPrint data capture
TouchPrint Printer
ServiceWatch maintenance logger
DAS (Data Acquisition System)
TracKing? (tracking and load monitoring)
Wintrac (data analysis software)

Load Protection

TSR-3 standard in-cab display
Heater Bar Kit
Auto phase correction
SafeGuard battery protection kit
Door switches
Diesel/electric auto switching

Customization

Whisper kit acoustic
TSR-3 premium in-cab display
TSR-3 rear remote control
Electronic Fuel Capture
Remote Status Light and Combination Display
Hose management kit
Solar Panel
Evaporator guard
Body mount enclosure
90L fuel tank
Drain Kit for Transverse Remote Evap
Triple Combo Display

T-Series Heating Option

For extreme cold environments

When delivering temperature sensitive cargo under extreme low ambient conditions, operators demand a reliable, durable refrigeration unit which will give maximum up-time while fully protecting their valuable cargo. In other words, complete peace of mind.

Customers in extreme low ambient conditions need refrigeration units with sufficient heating capacity to maintain loads in their optimum condition. To meet these special requirements, Thermo King has developed a means of capturing heat from the unit’s engine coolant and using it to boost heating performance. A secondary coil is built into the evaporator through which the coolant is routed to give heating capacities which are up to double the conventional values.

With the T-Series Heating Option

• T-600R and T-800R heating capacity on engine power is more than doubled to 6220W using water heat kit
• T-1000R is increased by 46% to 6000W with heat upgrade
• No additional refrigerant charge is needed for any of the above so there is no environmental impact
• Electric heater bars option gives an additional 1900W for all units on electric stand-by

Unmatched versatility to meet customer specifications.
 Refrigerant Options
• R134a
• R407C

 Motor Options
• Brushless
• Wound Field
• Permanent Magnet

 Compressor Options
• X426/X430
• S391 Screw
• S616 Screw

Evaporator Airflow* *
0 mm (0 in.) water column external static pressure High speed fan -3814 m3 /hr (2250 cfm) Low speed fan -2366 m3 /hr (1400 cfm)
* *Consult factory for optional airflow on high speed or low speed fan operation.

Performance Data
System net cooling capacity with 35°C (95°F) ambient, and 26.7°C (80°F) db, 19.5°C (67°F) wb evaporator return air (50% RH):

System Heating Capacity
24,696 KCal/hr (98,000 Btu/hr)@ 8 GPM & 160°F water

Electric Power Requirements
AT 27V dc
High speed fan: 106 amps (high speed evaporator and condenser fans) Power source: Bus alternator or Thermo King batteryless alternator (options below)

T-Series Standard Features

– Multiple zones can be controlled using identical expansion modules via CAN network and interconnected software
– Expanded CAN communication capability to plug directly into the vehicle’s J1939 network
– Operator-friendly display and pressure modules for improved control and diagnostics

Additional Standard Features

Evaporator fan motor
– Heavy-duty, double shafted industrial permanent magnetic motor with replaceable bearings and brushes
– 27V, 1.15 hp, 1700 rpm (high speed)
– Drives two large, high airflow, forward curved, centrifugal blowers Condenser fan motors
– Two, heavy-duty, industrial permanent magnet motors with replaceable bearings and brushes
– 27V, .75 hp, 1900 rpm (high speed)
– Each motor drives a 457 mm (18 in.) diameter axial flow fan

Four simple modules remove complexity for operators and technicians.
Display Module    –   Pressure Display Module     –     Main Module      –     IO Module

Unit Operation W/Driver Mode Switch
Reheat: Compressor clutch continuously engaged, boost pump and water control valve cycling is controlled by thermostat.
Cool: Compressor clutch cycles On/Off on demand of thermostat.
Vent: Evaporator fan operation only.
Heat: Boost pump and water control valve cycle on demand of thermostat. Compressor clutch off.
