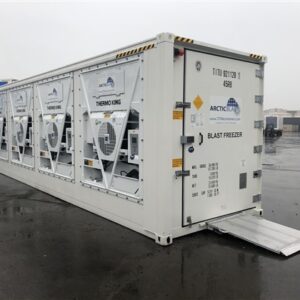

Buy 40FT Blast Freezer Containers Online -40°F TO 70°F (460V230V 3P)
$23,500.00 – $38,000.00
Buy 40FT Blast Freezer Containers Online
40ft Blast Freezer for Sale
For high-value produce and pharmaceuticals.
40FT/12M cooling effect approx. 76.000 Kcal/hour 300.000 btu/hour with 5 machines
40ft Blast Freezer -76°F to -4°F
40 Feet Blast Freezer
- Cold storage blast freezer
- Temperature range -40°F to 70°F
- Requires five power supplies 460V 3 phase or 230V 3 phase with optional transformer
- Easy-open butcher door
- Flat floor
- LED Interior lights
- Walk-in curtains
- Total capacity of 21,800Kcal/hr (86,000Btu/hr) ambient 100°F(37.8°C)
- Calculated on average values 44,000 lbs of fish will be cooled to 0°F(-18°C) core temperature from 41°F(5°C) in approx. 35 hours.
40ft blast freezer container for sale near me
40ft Blast Freeze Reefer

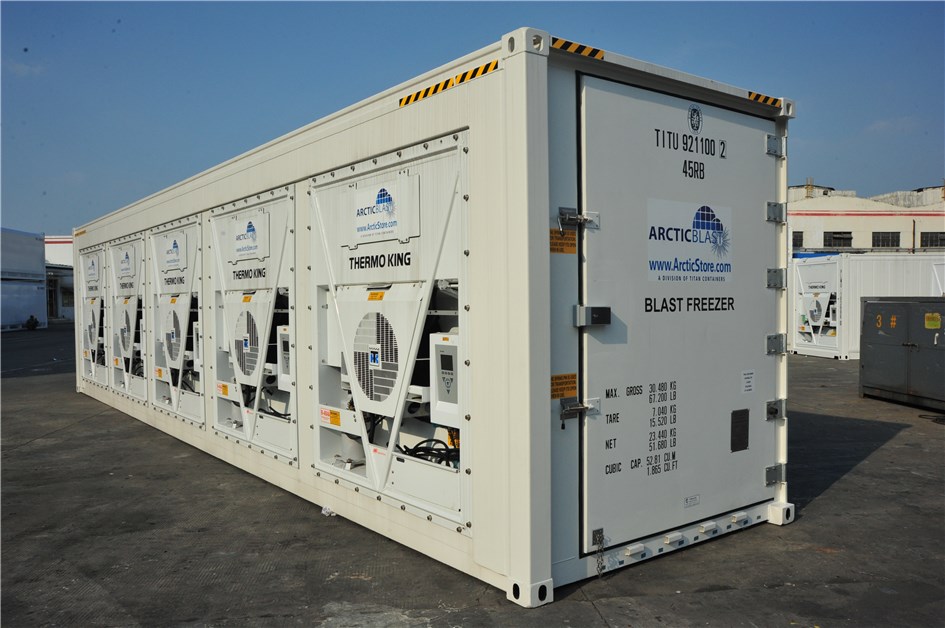

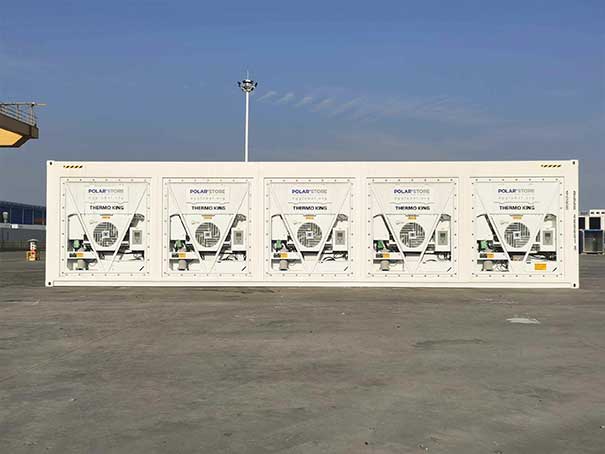

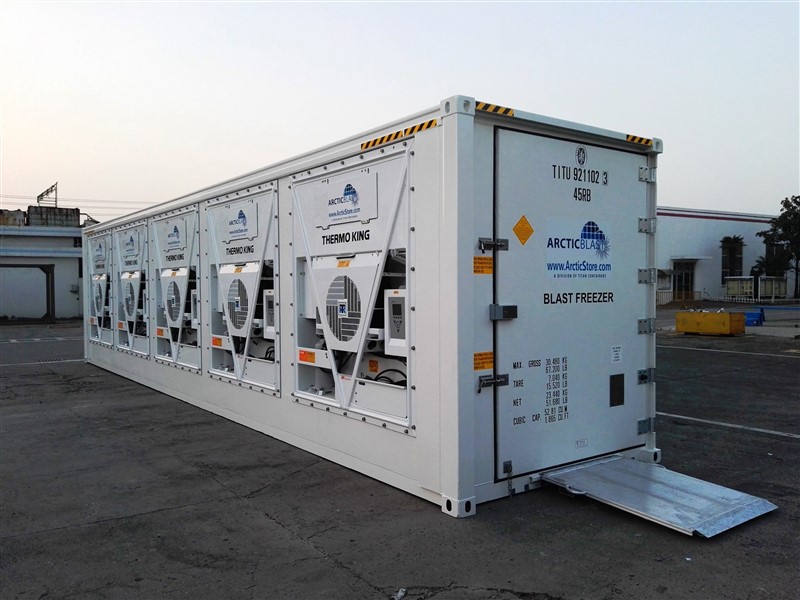

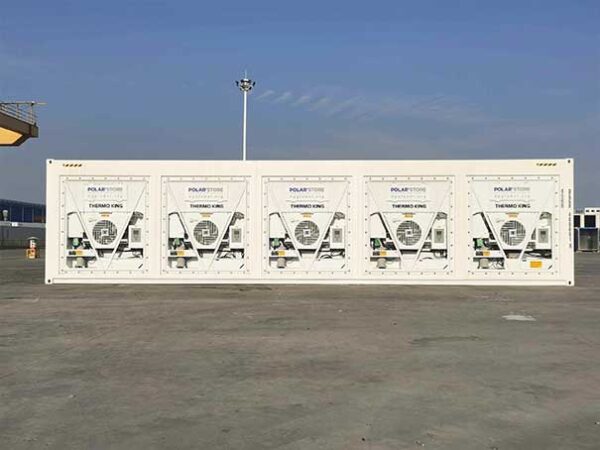

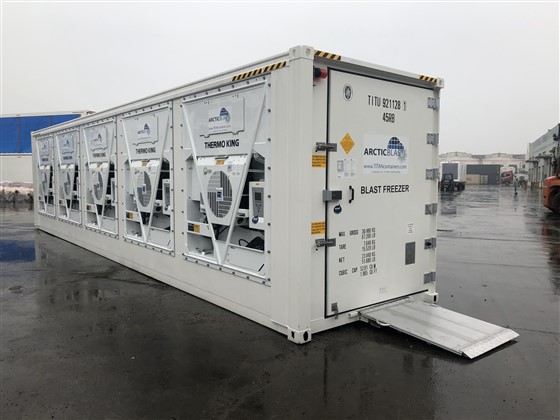

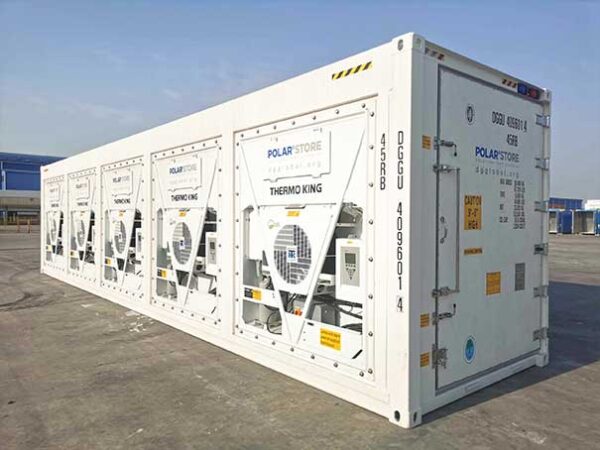

40ft Blast Freeze with 5 Thermo King reefers. Built for rapid chill/freeze. Available for rental or purchase.
5-year warranty on new 40ft blast freezer containers
Buy 40FT Blast Freezer Containers Online
40ft Blast Freezer Container for Sale Near Me
Best New 40ft Blast freezer for sale
The 40ft Blast Freezer Container is a state-of-the-art refrigerated unit designed for rapid and efficient blast freezing, Theperishable goods, particularly suited for storing and preservingperson-trapped seafood, meats, and other temperature-sensitive products. With a temperature range from -40°F to 70°F (-40°C to 21°C), this container ensures precise control over the freezing process, maintaining the quality and freshness of the stored items.
Buy 40FT Blast Freezer Container Online
Buy 40ft Blast Freeze Reefer Online
Prevent spoilage with our 40ft commercial blast freezers. Store perishable items like fish, meat and pharmaceuticals with confidence. This cold storage can reach temperatures -76°F with ease. adjustable evaporator ceiling fan will allow you to lower cargo temperatures faster.
- Cold storage blast freezer 40ft in length
- Temp ranges -4°F to -76°F (-20ºC to -60ºC)
- Requires two power supplies 460 V 3 phase or 230 V 3 phase with an 40-footoptional transformer
- Easy open butcher door
- Flat flooring
- Even temperatures throughout cargo space
- High capacity unit for freezing seafood, meats, pharmaceuticals
- Evaporator fan designed for cargo with high-pressure drops
- Adjustable ceiling fan to quickly lower cargo temperature
Specifications
| External Dimensions | Internal Dimensions | Door Dimensions | Weight |
| Length: 40′ (12.19 m) | Length: 39′ 3” (11.96 m) | Width: 7′ 8” (2.34 m) | 9,880 lbs. (4,481 kg) |
| Width: 8′ (2.44 m) | Width: 7′ 8” (2.34 m) | Height: 7′ 5” (2.26 m) | |
| Height: 8′ 6” (2.62 m) | Height: 7′ 10” (2.38 m) |
- 5-year warranty on new 40ft blast freezer containers
Buy 40FT Blast Freezer Containers Online
Set Point (⁰C) |
-20⁰C | -30⁰C | -40⁰C | -50⁰C | -60⁰C |
Refrigeration Capacity (kW) |
27.4 | 25.0 | 24.9 | 15.8 | 10.3 |
Power Consumption (kW) |
37.6 | 33.0 | 32.6 | 24.7 | 14.8 |
-
- Internal Capacity: 55.6m3 (1,963 Cu.ft)
- Door Opening Dimensions: Width 1,737mm, Height 2,537mm
- Ratings: Max. Gross Weight 30,480kg, Tare Weight (excl. Unit) 4,600kg, Tare Weight (incl. TK Magnum Plus Unit) 6,450kg, Max. Payload 24,030kg
- Insulation Thickness and Density:
- Roof: 90mm, 40-45kg/cu.m
- Side Walls: 65mm, 45-50kg/cu.m
- Door Panels: 81mm, 45-50kg/cu.m
- Floor: 51/111mm, 50-55kg/cu.m
Buy 40ft Blast Freeze Reefers Online
Buy 40FT Blast Freezer Online
The unique properties of these commercial freezers mean perishable food or pharmaceuticals can rapidly be brought down to temperatures as low as -40°c. Because of this, you can reduce the time needed for the produce to reach the optimum temperature and reduce any waste incurred through not reaching or remaining at that temperature.
- -25°C to +10°C
- Sixteen Pallet Capacity
- Food Grade Storage
It is easy to see then how this can make safe food storage more efficient and cost effective. And as they are fully weatherproof, this 40ft blast freezer can free up some indoor space.
Buy 40 Foot Blast Freezer Containers Online
Buy 40 foot Blast Freeze Reefers Online
Contact us today to get a free quote and Invoice
ARCTICBLAST FOR RAPID CHILLING AND FREEZING
40FT/12M cooling effect approx. 76.000 Kcal/hour 300.000 btu/hour with 5 machines
ArcticBlast supplies a constant airflow and chilling effect that rapidly chills and where required carries on to freeze the produce to -40°C or where you need it.
Buy 40 foot Blast Freeze Reefer Online
The combination of airflow and effect determines the speed at which produce transfers heat to the passing air. Realisable airflow is determined by the static pressure and power supply. 60 Hz power increases the airflow by more than 10% compared with 50 Hz. On the basis of averages, the airflow with high fan speed is more than 20.000 m3 per hour. At low fan speed (from minus 5°C) the airflow will reduce to approx. 10.000 m3 per hour.
Blast freezing cold storage
Our blast freezers and chillers allow your business to meet the specific freezing, chilling and thawing demands of your product. Combined with the quality of Long Beach Off-Coast Depot asset and service, it allows your business to take control of its critical processes.
Buy 40 Foot Blast Freezer Online
Buy 40 Foot Blast Freezer Container Online
Using the latest 5 Thermo King refrigeration units, our cold stores can freeze large quantities of goods in very little time. This is a vital process for many companies that need to transport perishable goods before onward travel. Air can be cycled around the unit at various speeds to match the required freezing rates of the product, and the cycle can be reversed so that products can thaw at the correct temperature.
Blast Freezer 5 Thermo King
The Forced Air Blast Freezer allows for the rapid freezing of products below 0°F while preserving their quality and retaining the maximum amount of nutrients possible.
Features
- Delivery to your location.
- New or refurbished units available.
- Option to purchase or hire.
- Flexible hire periods from 6 to 36 months.
- Unbelievable pricing.
- Cold Storage Blast Freezer: Engineered to provide rapid and uniform freezing, preserving the quality and integrity of perishable goods.
- Temperature Range: Capable of maintaining temperatures as low as -40°F (-40°C) for deep freezing or as high as 70°F (21°C) for chilling applications.
- Power Requirements: Compatible with both 460V and 230V 3-phase power supplies, with an optional transformer for flexibility in power connection.
- Easy-Open Butcher Door: Equipped with a user-friendly door for convenient access to the stored items.
- Flat Floor: Provides a smooth surface for easy loading and unloading of goods.
- LED Interior Lights: Illuminates the interior for enhanced visibility and accessibility during operation.
- Walk-in Curtains: Helps to minimize heat transfer and maintain consistent temperatures, especially during frequent access.
- High Capacity: Offers a total cooling capacity of 21,800 kcal/hr (86,000 Btu/hr), ensuring efficient freezing of large quantities of products.
- Insulation: Utilizes high-density insulation materials in the roof, side walls, door panels, and floor, ensuring excellent thermal efficiency.
- Heat and Air Leakage Values: Designed with low heat and air leakage values (Umax = 60 kcal/deg.c.hr and Qmax = 16 m3/hr), ensuring optimal performance and energy efficiency.
40FT Blast Freezer Containers For Sale
40ft Blast Freeze Reefers For Sale
This blast freezer container offers superior freezing capabilities, robust construction, and efficient operation, making it an ideal solution for businesses requiring reliable cold storage for their perishable goods.
Technical Specification
- -25°C to +10°C.
- A huge pallet capacity from 1 to 16.
- High specification units available.
- Easy open doors and non-slip flooring.
- Food Grade blast freezing.
- Suitable for any industry.
Further Information
| Carrier | ThermoKing x2 | |
|---|---|---|
| Temperature Range | -25 ̊C to +10 ̊C |
-40 ̊C to +10 ̊C |
| Power Supply | 400 VAC 3 Phase |
400 VAC 3 Phase |
| Socket Required | 32 Amp 5 Pin Red x 2 |
32 Amp 5 Pin Red x 2 |
| Power Cord Length | 12 Metres |
12 Metres |
| Refrigerant | R134A |
R404A |
Benefits
Mobil
Turnkey project
Up to 4 TN
Usage
Freezing of poultry and fish
Freezing of fruits and vegetables
Blast Freezing & Chilling
Our range of blast freezers offers high-quality cold storage in a range of sizes suitable for a variety of industries. Being able to cool produce efficiently helps eliminate the growth of harmful bacteria, ensuring products are safe for consumption once defrosted as well as being able to sore goods for longer.
40FT Blast Freezer Container For Sale
40ft Blast Freeze Reefer For Sale
Alongside effective and efficient freezing, our blast chillers also boast safety features including LED lighting, non-slip flooring and person trapped alarm system with fridge shut down.
Benefits of a blast chiller
It’s important to cool food as quickly as possible after cooking because at room temperature, harmful bacteria can begin to develop. Bacterial contamination can happen within just a couple of hours, which is why finding a way to speed up the cooling process is so vital for the health and safety of you and your customers.
40FT Blast Freezer For Sale
DOUBLE EFFECT BLAST FREEZER TO -40°C
Fitted with the double compressor UltraFreezer refrigeration the effect is doubled up. Blast freezing will take approx ½ the time or twice the weight can frozen in the same time.
PACKING DENSITY
As with all blast freezers and rapid chillers, actual performance is also determined by packing density. For the fastest results, there needs to be airflow over the greatest possible surface area of the produce, See pallet/cage floor plan.
TEMPERING
With ArcticBlast you can also perform tempering. With standard heaters, an ArcticBlast 5 will deliver a 26,25KW effect. 20.000 KG of ham would be tempered from -18°C to +2°C in approx. 49 hours. The heating effect can be increased through extended heaters and this would reduce the required time to approx. 34 hours
ARCTICBLAST ‘N STORE
We also offer the combination of blast freezing (rapid chilling) and storage under 1 roof with single or multiple access doors direct from the storage area to the “blast” zone. This combination is available with the ArcticBlast 5 with 25 m2 connected storage.

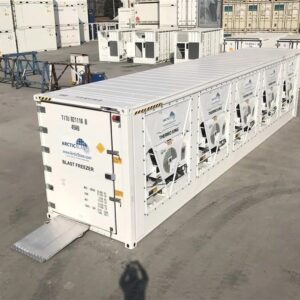

Buy 40FT Blast Freezer Containers with 5 Thermo King reefers Online
DOORS AT BOTH ENDS

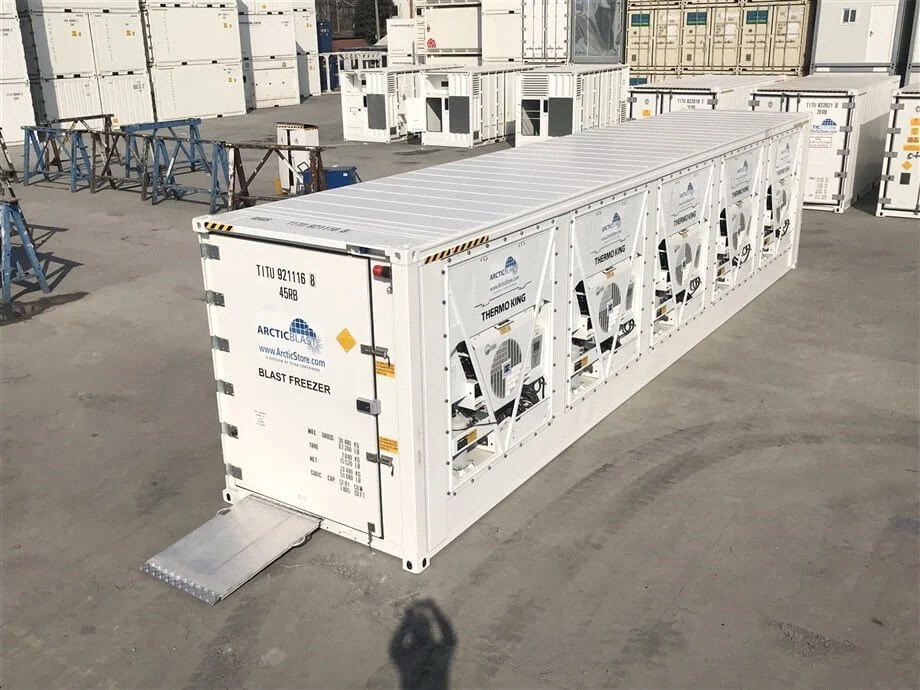

ArcticBlast5 features single doors at both ends of the rapid chiller/freezer. Both doors include internal door release/opening.
Airflow is circular from the left bottom with air return top left-hand side.
Hygienic food-grade stainless steel and aluminium interior panels and floor.
Internal lighting and ISO approved day-glow emergency and information signage.
Buy 40ft Blast Freeze with 5 Thermo King reefers Online
Exploring Blast Freezer Containers
Blast freezer containers are specialized storage solutions designed to rapidly bring down the temperature of perishable goods, locking in freshness and extending shelf life. These units are essential in various sectors, including food processing, pharmaceuticals, and logistics, ensuring that products remain at optimal temperatures during storage and transportation.
Types and Applications
There are multiple types of blast freezer containers tailored to meet the needs of different industries. From compact units for small-scale operations to large-scale systems for commercial use, these containers serve a critical role. They are commonly utilized in meat and seafood processing, dairy production, and by businesses requiring the preservation of temperature-sensitive goods.
Features and Materials
A blast freezer container is equipped with features that promote efficiency and reliability. Typically constructed from robust materials like stainless steel, they offer durability and easy maintenance. Insulation is a key component, often involving advanced materials to prevent temperature fluctuations. The integration of precise temperature controls allows for the setting of specific conditions suited to the contents being stored.
Advantages of Utilizing Blast Freezer Technology
The use of a blast freezer container presents numerous advantages. By rapidly reducing temperatures, these containers inhibit bacterial growth and preserve the integrity of products. This technology is not only crucial for food safety but also aids in maintaining the nutritional value and taste of stored items. Additionally, the swift freezing process is beneficial for businesses looking to increase efficiency in their supply chain.
Buy 40ft Blast Freeze 5 Thermo King reefers Online
Complementary Equipment
While the primary focus is on the blast freezer container, it’s important to note that a range of complementary equipment is available to enhance the functionality of these systems. Insulating panels, temperature monitoring devices, and specialized shelving can all be integrated to customize the container to specific operational requirements.
Choosing the Right Blast Freezer Container
Selecting the appropriate blast freezer container involves considering factors such as size, temperature range, and the specific goods to be stored. With a variety of configurations available, it’s possible to find a solution that aligns with the operational demands of any business, ensuring that products are kept in peak condition until they reach the end consumer.
PORTABLE RAPID CHILLING AND BLAST FREEZING
RENTALS AND SALES. GET A MOBILE ARCTICBLAST
GET BLASTED
Buy 40FT Blast Freezer Containers 5 Thermo King reefers Online
ArcticBlast5 an incredible 706,000 ft³ per hour of airflow. One-piece butchers doors on either end, ramp availability, internal lighting, and “man trapped” alarm are standard.
Current customer applications include:
- Harvested and farmed tropical and cold-water fish
- Meats and meat-based products
- Agricultural produce including fruits
- “TV dinners” or pre-prepared meals
- Pharmaceutical PCM conditioning and storage
- Can also be used for tempering.
40FT Blast Freezer Containers Sale Near Me
40ft Blast Freeze Reefers Sale Near Me
BLAST ‘N STORE
ArcticBlast can be an integral part of our SuperStore modular cold rooms.
The complex showing here includes 2 sliding doors connecting the approx. 1050 ft² open plan storage area with an ArcticBlast5. The blast freezing, rapid chilling or tempering zone is around 200 ft².

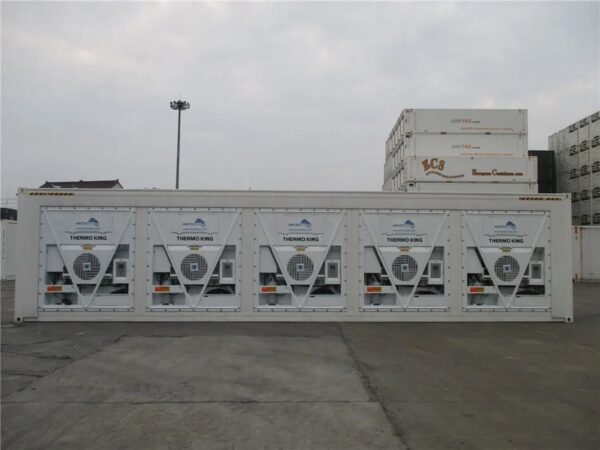

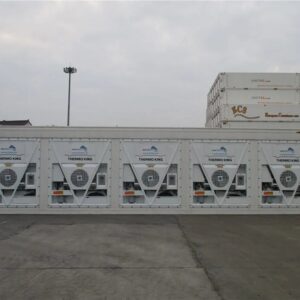

ARCTICBLAST5 MACHINE SIDE
ARCTICBLAST5 ALTERNATIVE SIDE
ArcticBlast 5, maximum output is in excess of 300,000 BTU/hr (≈76,000 Kcal/hr).
The combination of airflow and effect determine the speed at which produce transfers heat to the passing air. Actual air flow is determined by the static pressure and power supply. 60 Hertz power increases the air flow by more than 10% compared with 50 Hz. And on the basis of average power (50 – 60 Hz) the mass air flow rate at the high fan speed exceeds 700,000 ft³ per hour and with TITAN software the high fan speed can be maintained at all times. With low fan speed (at 20°F/-7°C) the air flow will reduce to approximately 350,000 ft³ per hour.
40ft Blast Freeze Reefer Sale Near Me
What does all this technical jargon in reality mean?
In short, whatever you place in an ArcticBlast 5 will chill, and if required then freeze, in accordance with another scientific equation based upon the effect above and produce temperature and the produce’s Kcal values. All produce has their individual values that influence the speed of temperature loss or chilling/freezing process.
Flexible sizes from 10 m³ (343 ft³)The temperature reduction zone of a ArcticBlast5 is more than 20 m² (215 ft²) – with pallet footprints of 0.96 m² (EU) and 1.2 m² (UK/US GMA) the recommended pallet capacity for fastest results, including free space for air circulation, is 14 EU pallets.

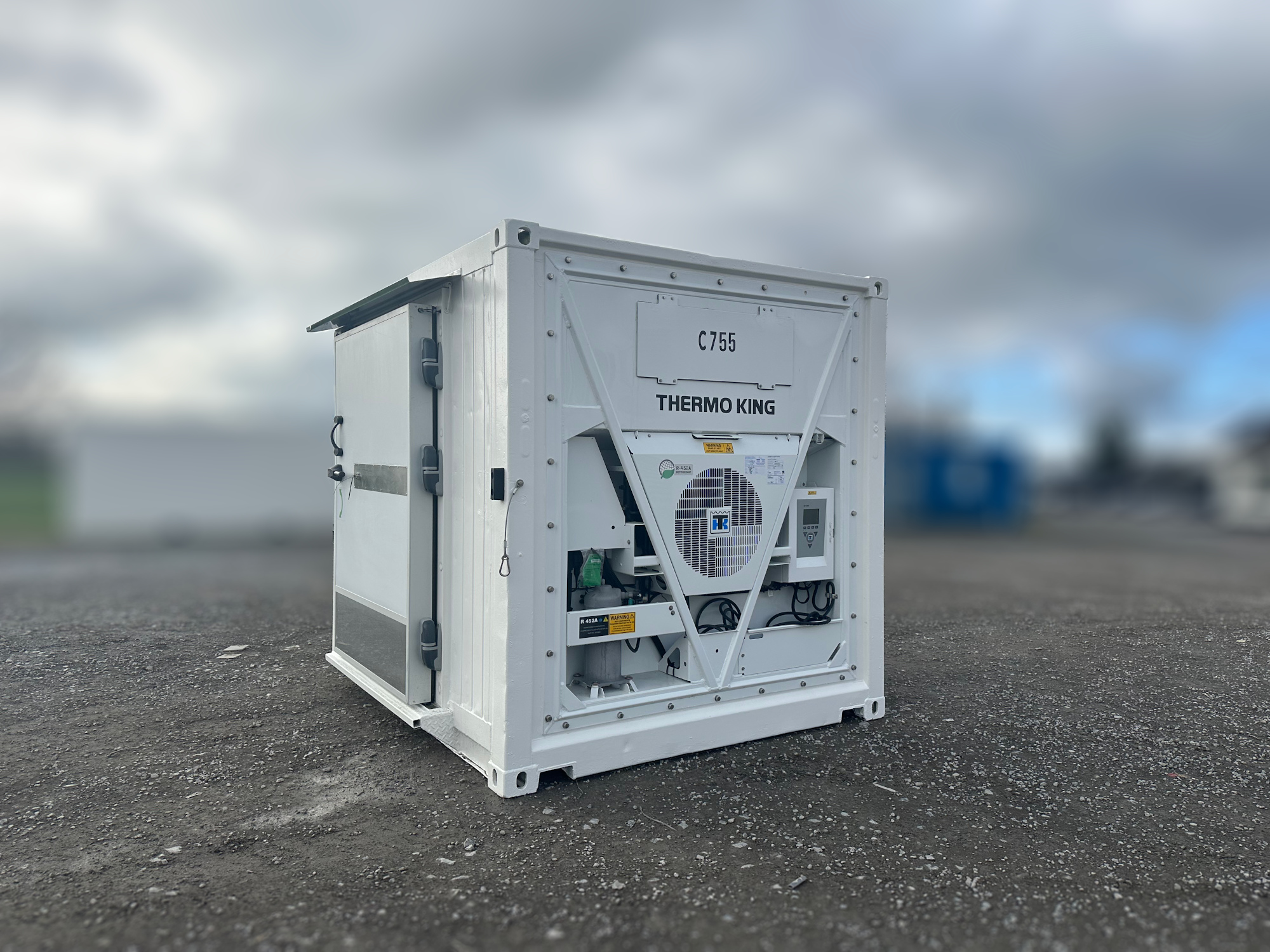

Smaller ArcticBlast (10′ and 20′) lower effect models are also available. For 3 EU pallets a standard ArcticStore 10’ will work quite well with rapid chilling and even blast freezing small volumes.
40FT Blast Freezer Sale Near Me
40FT Blast Freezer Container Sale Near Me
Rapid chilling – fruit and vegetables:Calculated on average values 20,000 KG (44,100 lbs) of produce will reduce by 1°C each 20 minutes or be cooled to +5°C core temperature from 30°C in ≈ 8 hours.
Blast freezing meats:Different meats also have different thermal loss values; the greater the fat content (%) the faster the heat loss.
Again using averages 20,000 KG (44,100 lbs) at +5°C/41°F of high % fat beef will be frozen to -18°C/0°F core temperature in ≈ 22 hours whereas lean beef requires almost 30 hours. Typically, meats take between 1 hour and 1½ hours per 1,000 KG (220.5 lbs) from +5°C to a core temperature of -18°C.
40 Foot Blast Freezer Container sale near me
40 foot Blast Freeze Reefer sale near me
Some more facts and figures:
• Air supply from refrigeration is at floor level – produce needs to be palletised or in cages.
• More than 80% of the blast freezer length has direct air flow
• Average maximum distance for air travel in 5 models is approx. 6 meters
• Fans at high speed circulate the air in the blast freezer almost 150 times per hour or approx. every 24 seconds
• ArcticBlast 5 requires 5 x 32A 380/440V 50/60 Hz power supply.
40 Foot Blast Freezer sale near me
Packing density:
As with all blast freezers and rapid chillers actual performance is also determined by packing density. For the fastest results there needs to be airflow over the greatest possible surface area of the produce.
ArcticBlast ‘n StoreWe also offer the combination of blast freezing (rapid chilling) and storage under 1 roof with single or multiple access doors direct from the storage area to the “blast” zone. This combination is available with the ArcticBlast 5 with from 25 m² connected storage.
40 Foot Blast Freezer Containers sale near me
40 foot Blast Freeze Reefers sale near me
TemperingWith ArcticBlast you can also perform tempering. With standard heaters an ArcticBlast 5.1 will deliver 26,25KW effect. 20.000 KG of ham would be tempered from -18°C to +2°C in approx. 49 hours. Heating effect can be increased through extended heaters and this would reduce the required time to approx. 34 hours.
Connect to a buildingArcticBlast (and Blast ‘n Store) can be connected to an existing building with a connecting tunnel. We can even install inside an existing building always provided the dimensions permit.
FRESH AND FROZEN FOODS
Food producers, distributors, and outlets can all benefit from our reliable storage containers.
BIO AND LIFE SCIENCES
Pharmaceuticals, vaccines, and many other types of materials related to healthcare and life sciences.
CATERING AND EVENTS
Food and beverage storage at permanent kitchens or temporary event sites.
CUT FLOWERS AND PLANTS
Improved quality and extended shelf life for cut flowers and house plants.
PRECISE CONTROL
Temperature settings are precise and the same temperature is maintained throughout the container. Air circulates along the floor and returns under the ceiling.
FAST RECOVERY AFTER OPENING THE DOORS
The powerful refrigeration system quickly corrects the temperature change after door opening.
FRESH AIR EXCHANGE
When storing fresh fruits, vegetables as well as plants and flowers we recommend opening the fresh air exchange valve to gradually remove the harmful gases produced by ripening products.
