Buy Thermo King SB-110+ Trailer Refrigeration System Online

A full range of trailer units that offer greater efficiency, ease of use, and uptime.

SB-Series: Trailer Refrigeration Units

The SB-110+ was introduced at the Mid-America Trucking Show. The reefer unit follows on the heels of the company’s 210 and 310 models but provides a reduced cooling capacity.

This unit is elementary to use and operate, and at the same time it provides the best available technology.

The SB-110 is perfect for dairy and deli operators making shorter trips and in-city deliveries.

Like its more powerful cousins, the SB-110+ comes equipped with the SR-2 controller, which features the industry’s largest temperature display making it easy to read from a distance. The controller is also sloped downward so it doesn’t reflect sunlight and the keypad has been more conveniently located. Also, the SR-2 functions in various languages.

Refrigeration Capacity
System net cooling capacity at 100°F (38°C) ambient and high-speed engine operation

System Performance
Microprocessor-controlled, high-capacity, front mount, diesel-powered temperature control unit with directional air delivery for today’s jumbo trailers.

Model available SB-110+

Cooling and heating on engine operation using R-404A refrigerant Operation
• SR-2 Controller
• OptiSet™ Plus with available
FreshSet™ programmable modes
• Continuous run/CYCLE-SENTRY
• Automatic defrost initiation
• Programmable defrost timer
• CargoWatch™ data meets HACCP and NIST standards.

Compressor
• Model X426L
• 26.0 cu in (426.1 cm3) displacement
• High strength forged crankshaft
• Lightweight, aluminum alloy body, heads and sump
• Replaceable cylinder liners
• Vanasil® ringless pistons
• Gerotor oil pump

Engine
• TK486V direct-injection diesel engine
• Four cylinder, liquid cooled
• API classifi ed CI mineral oil after break-in
• 15 qt (14.2 liter) oil capacity
• 34.0 hp rating operating at 2200 rpm
• 3000 hour maintenance intervals
• Meets EPA emissions requirements for Interim Tier 4

Air flow
3,500 CFM @ 0 in static pressure
3,200 CFM @ 0.5 in static pressure

Improve driver comfort

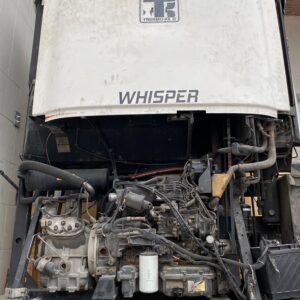

with Enhanced Whisper™ Low Noise Technology
Thermo King’s exclusive Whisper technology, which is now quieter than on previous models, provides you with another tool to reduce noise pollution, increase driver retention and comply with noise ordinances.

Reduce maintenance costs and waste with EMI-3000 extended maintenance interval
• Reduces clean up and disposal costs
• Reduces environmental impact with less spillage and less waste
• Extends engine life
• Lower maintenance costs than competitive models

Fuel Savings
The SR-2 features several improved fuel-saving features

• CYCLE-SENTRY mode
• CYCLE-SENTRY Modulation mode
• Economy mode
• Electronic door switch input

Improved Diagnosing
Better diagnostics make it easier for drivers to understand and respond to potential problems, the first line of defense in transport refrigeration.
• Comprehensive listing of alarm codes
with text descriptions
• Customer-selectable alarms
• Service test mode

Language Selection
Drivers can choose from 21 languages with a multi-lingual text menu.

CargoWatch™
Provides temperature & system data for HACCP plan. From the time cargo is loaded to its final destination, the SR-2 logs the trip history with all essential information necessary to maintain your HACCP plan. CargoWatch options
include:
• 6 temperature sensors/probes
• 4 door switches
• Data averaging
• Programmable, temperature  out-of-range alarms

CYCLE-SENTRY™ Modulation
Combines the benefits of continuous run and our CYCLE-SENTRY fuel saving feature for optimum efficiency with certain types of cargo in fresh temperature ranges. Enhanced Safety and Security At the end of the day, protecting your load is what it’s all about. The SR-2 was designed to make that job easier and even more effective with:
• Keypad with lock-out
• Mode-lock
• Phase-correction
• Diesel/electric auto switching
• Setpoint warning
• Return or discharge
air control (with ETV)

Enhanced FreshSet™
Provides the tool to optimize protection of fresh loads and eliminate worries. Combined with the Electronic Throttling Valve (ETV), this system provides optimum unit capacity over the full range of ambient and cargo temperatures.

Enhanced FreshSet™
Provides the tool to optimize protection of fresh loads and eliminate worries. Combined with the Electronic
Throttling Valve (ETV), this system provides optimum unit capacity over the full range of ambient and cargo temperatures.

SB-110+ – Thermo King

The controller can be locked to prevent tampering and it also has a “mode-lock” feature to prevent the accidental selection of the incorrect operating mode. Audible and visual warnings alert the driver to any potential problems with the unit’s settings.

Thermo King has launched its new SB+ line of temperature control units for trailers. The new line, the latest step in the evolution of the SB series, includes the SB-110+, SB-210+ and the SB-310+, all for trailers, and the SB-310R+ for rail applications.

Warranty
Terms of the Thermo King Warranty are available on request from Long Beach Off-Coast Depot local Thermo King dealer.

Weight
Inches (Millimeters)
SB-110+ – 1635 lbs (742 kg)

Fuel tank, 50 gallon – 35 lbs (16 kg)

This line of new units was developed to help offset the growing challenges faced by those in the trucking industry: higher fuel costs, higher operating costs and increased driver turnover.

Among several enhancements to the previous units, every new unit comes standard with OptiSet Plus, which makes choosing optimum unit settings simple for drivers and reduces errors, the maker said.

• Optimum cargo protection and improved cargo quality
• Fuel savings when used along with the features of the SR-2 controller
• Maximum shelf life for fresh commodities
• Reduced shipper and driver errors
• A library of more than 500 temperature-sensitive commodity profiles
• The ability to install 64 profiles per unit
• Technology backed by research from food and agricultural industry experts

Also, the SB-210+ offers the option of adding SmartPower, which allows the unit to operate on electric power in addition to being powered by the standard diesel engine. SmartPower saves fuel and can cut operating costs by up to 75 percent, the company said, all while helping our environment by reducing harmful emissions.

“The SB+ Series was developed as a direct response to customers’ desire for units that are easier to operate, that reduce the risk of errors and that provide lower operating costs by reducing fuel consumption,” says Jerry Duppler, trailer product manager for Thermo King. “OptiSet Plus is a powerful tool that provides customers with the assurance that units are operating at optimum efficiency for the specific cargo in each load.”

Product Model

                       the SB+ Series Units (SB-110+ / SB-210+ / SB-310+)
